Are Wafer Edge Grinders and Metal Chamfering Machines the Same Equipment? What are the Differences?
Wafer Edge Grinders and metal chamfering machines are not the same type of equipment. Although both feature "chamfering" as a core function, the former is a high-precision specialized device for the semiconductor field, while the latter is a general-purpose machining tool. They differ significantly in design principles, application scenarios, and technical parameters.
1. Differences in Processing Objects and Application Scenarios

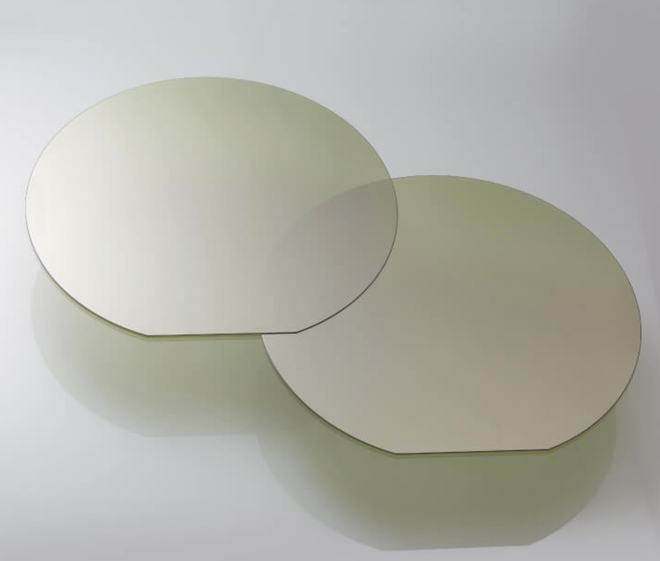

- Wafer Edge Grinders: Primarily target semiconductor wafers (silicon, silicon carbide, sapphire, and other brittle materials). Their core function is to remove sharp edges after slicing to prevent cracks or edge dislocations in subsequent processes. This is a critical step in pre-chip manufacturing.
- Metal Chamfering Machines: Primarily target metal components (plates, pipes) such as carbon steel, stainless steel, and aluminum alloys. Their main function is to remove machining burrs and form V-shaped/Y-shaped grooves or smooth edges required for welding. They are widely used in general machinery fields like shipbuilding and pressure vessels.
2. Differences in Core Technology and Precision Requirements
- Wafer Edge Grinders: Require extremely high precision and microscopic control. Processing accuracy must reach ±30μm, and strict control of crystal orientation and edge morphology (e.g., R-shape, T-shape) is necessary. Through rough and fine grinding stages, edge roughness is reduced to an absolute minimum, and the creation of a damaged material layer is strictly avoided.
- Metal Chamfering Machines: Focus on efficiency and macroscopic shape. Processing accuracy is typically ±0.1mm, and a surface roughness of Ra3.2-Ra6.3 is sufficient. These machines offer a wide angle adjustment range (30°-60°) and large groove widths. Some models support manual feeding to accommodate the rapid processing of plates of varying thicknesses.
3. Differences in Equipment Structure and Operational Characteristics
- Wafer Edge Grinders: The system is complex and highly automated. Composed of a robotic arm, vacuum adsorption stage, forming grinding wheel, and cleaning/drying system, it features optical calibration and data feedback. It achieves a closed-loop process from loading, processing, and cleaning to unloading.
- Metal Chamfering Machines: The structure is relatively simple. The core components are a motor and a milling cutter head, available in portable and bench-top versions. Some models use crawler transport or magnetic adsorption for fixation. Processing speed is fast (up to 3.5m/min), focusing on operational flexibility and batch production efficiency.
The two are not interchangeable.
Wafer Edge Grinders focus on the micron-level precision processing of brittle materials, while metal chamfering machines focus on the efficient groove and deburring treatment of metal components.
